The Corrugated Galvanized Steel PVC Tarpaulin Fish Farming Tank is a durable, cost-effective aquaculture solution designed for fish farming and water storage. It combines a corrugated galvanized steel frame with a reinforced PVC tarpaulin liner, offering rust resistance, strong structural support, and reliable waterproof performance. The tank is easy to assemble, flexible in size, and suitable for outdoor fish farming, temporary aquaculture, and custom projects.
Product Name: Corrugated Galvanized Fish Tanks
Material: Galvanized Mild Steel
Capacity : 1m³ - 1500 m³
Original: China
Loading Port: Tianjin,Qingdao,Shanghai.
Specification
Main Structure：
The corrugated fish farming tank mainly has two parts:
Outer frame:
Hot-dip galvanized steel sheets are pressed into corrugated (wave-shaped) sections. These modular sections are bolted together with double-row screws to form a sealed round frame. The corrugated shape resists water pressure well, reduces deformation, and supports high water levels.
Inner liner:
A PVC-coated waterproof canvas (knife-coated tarpaulin), usually 500gsm ~1200gsm 0.38 ~1.2 mm thick, is laid inside the frame. It is waterproof, UV-resistant, corrosion-resistant, cold-resistant, and aging-resistant.
Common specifications range from 3 to 20 meters in diameter and 0.95 to 2.8 meters in height, with custom sizes available upon request.
Structure
① Corrugated Galvanized Steel Sheet ② PVC Tarpaulin Liner ③ Bottom Drain ④Edge Protector Strip ⑤Plastic-Coated Steel Wire Rope ⑥ Galvanized Bolts&Nuts
Key Features & Advantages
Technical Data
| Item | Corrugated Galvanized Steel PVC Tarpaulin Fish Framing Tank/Fish Farming Tank / Modular Aquaculture Tank |
| Diameter | 3 ～ 20m |
| Steel Panel Thickness | 1.0mm, 1.2mm, 1.5mm, 2.0mm |
| Frame Material | Hot-dip galvanized corrugated steel sheet |
| Shape | Round / Rectangular / Square |
| Zinc Coating Thickness | Z275 |
| Liner Material | PVC tarpaulin with polyester mesh reinforcement |
| Liner Weight&Thickness | 500gsm (0.38mm),
700gsm (0.54mm), 900gsm (0.7mm), 1200gsm (0.9mm). |
| Liner Color | Blue, Green, Dark Green, Gray, Black etc, Customized |
| Capacity | 7m3 ~ 2000m3 (7000L ~ 2000000L) |
| Feature | Waterproof, Leak-Proof, Flame-Retardant, Tear-Resistant, UV-Resistant, Rust-Proof, Corrosion-Resistance |
| Drain Size | DN110 / DN160, (Capacity < 50m3, DN110)
Flow Rate: DN110：Approx. 40 Ton/h DN160：Approx. 110—120 Ton/h |
| Windproof Design | Ground anchors, edge fixing, ropes |
| Service Life
|
3-10 Years (It depends on the environment & maintenance ) |

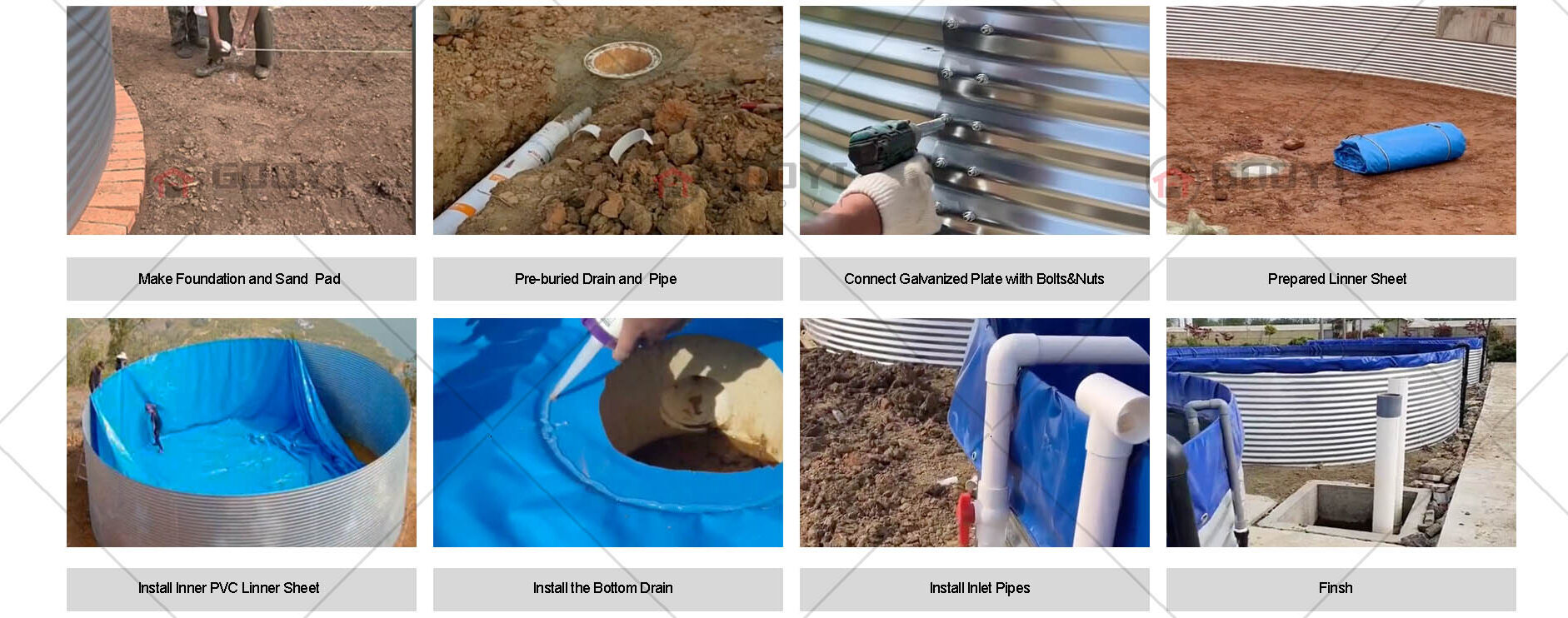

Installation Step
Step 1 ：：Make foundation and sand pad
Step 2 ：：Pre-buried drain and pipes
Step 3 ：：Connect corrugated galvanized steel plate
Step 4 ：：Install liner PVC sheet
Step 5 ：：Install bottom drain
Step 6 ：：Install the top roof cover
Step 7 ：：Install and connect pipes
Step 8 ：：Finish and inspection
FAQ:
Q1： What materials are used in this fish tank?
A：The tank frame is made of corrugated galvanized steel with a zinc coating of 275g/m², The liner is crafted from high-density PVC tarpaulin (550–1200g/m²) with heat-welded seams to ensure complete waterproofing.
Q2: How long does it take to assemble the tank?
A：A standard-size tank can be assembled by 2–4 workers in 2–4 hours using basic hand tools. No heavy equipment, welding, or civil construction is required — just bolt the frame together and install the liner.
Q3: What is the expected lifespan of the tank?
A：The galvanized steel frame lasts 10–15 years outdoors with proper maintenance. The PVC liner typically lasts 3–8 years depending on UV exposure and usage conditions, and can be replaced independently without discarding the frame.
Q4: Can the tank be used for both freshwater and saltwater?
A：Yes. The PVC tarpaulin liner is resistant to both freshwater and saltwater environments. For long-term saltwater use, we recommend upgrading to a vinyl ester–coated liner for enhanced corrosion protection.
Q5: What sizes are available, and can I customize?
A：Standard diameters range from 3m to 30m, with heights from 0.95m to 3.6m. We fully support custom sizing, colors (blue, green, black, white, etc.), and accessory configurations — OEM and ODM orders are welcome.
Q6: Is the PVC liner safe for fish and aquaculture?
A：Absolutely. Our PVC material is non-toxic and food-grade certified, with no harmful chemical leaching into the water. It meets international aquaculture safety standards and is safe for fish, shrimp, and other aquatic species.
Q7: How do I clean and maintain the tank?
A：The smooth PVC interior prevents algae and waste buildup — simply drain, rinse with clean water, and optionally disinfect between batches. The galvanized frame requires virtually no maintenance; just inspect bolts periodically for tightness.
Q8: What is the temperature range?
A：Standard grade performs reliably from -30°C to +70°C (-22°F to 158°F), covering most global climate zones.
Q9: What is the cost compared to concrete ponds or stainless steel tanks?
A：Our tank costs approximately 1/3 to 1/5 of a concrete pond and a fraction of stainless steel alternatives. Combined with zero civil construction costs and minimal maintenance, the total cost of ownership is significantly lower over its service life.
Q10: Do you offer accessories and installation support?
A：Yes. We provide a full range of accessories. Every order includes a detailed installation manual and video guide, and our technical team is available for remote support.
Application
Commercial Fish Farming
Ideal for large-scale farming of tilapia, catfish, bass, carp, grass carp, and other freshwater species
Shrimp & Prawn Aquaculture
Perfect for high-value shrimp species such as Pacific white shrimp and black tiger prawn
Fish Nursery & Hatchery
Fish fry require precise water quality and environmental control — the smooth, non-toxic interior is ideal for nursery stages
Recirculating Aquaculture System (RAS)
Serves as the core rearing unit in land-based Recirculating Aquaculture Systems
Home & Backyard Farming
Ideal for small-space farming at home farms, backyards, and rooftops
Ornamental Fish & Koi
Suitable for breeding and displaying koi, goldfish, tropical ornamental fish, and more
Integrated Farming Systems
Used as the aquaculture component in aquaponics systems，Fits circular farming models for eco-farms and organic agriculture projects
