FRP Grating Machines Factory Direct – Reliable China Supplier for Industrial Applications

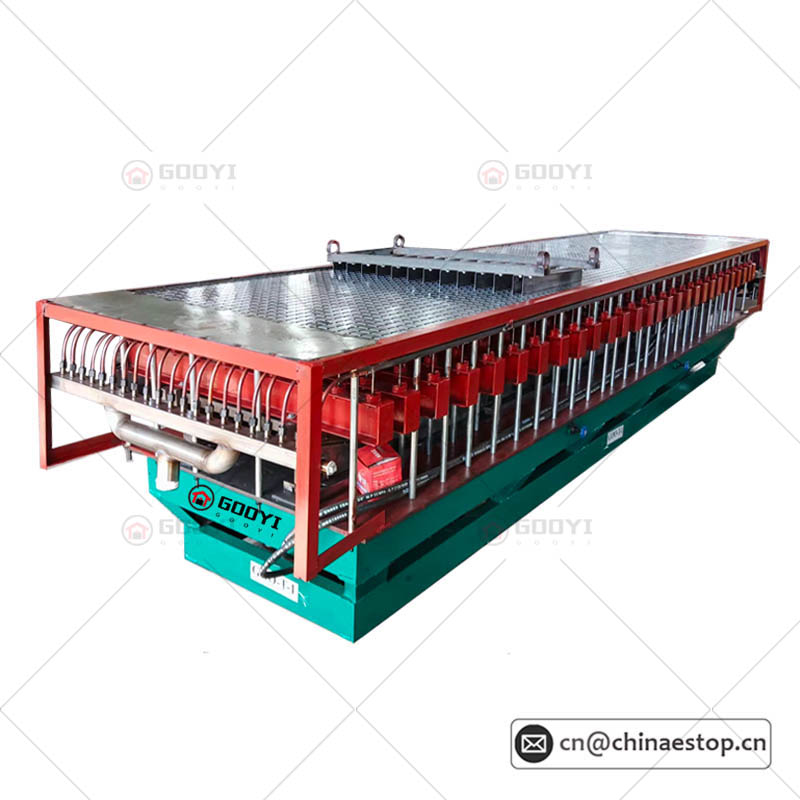

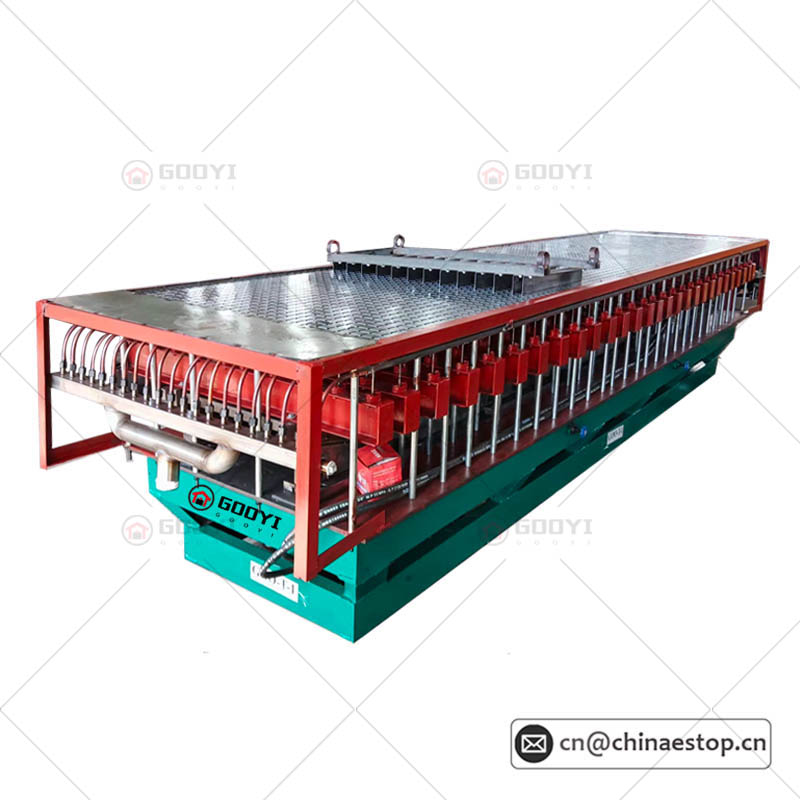

FRP Grating Mold is used for making different dimension of FRP(fiberglass reinforce plastic) molded gratings, commonly used size include H25, H30, H38 , and also can make customized dimensions according to request. Each grating mold include mold cavity and ejector pin de-molding system , The grating size can be adjusted by change the mold size. The important features are include easy operation , low maintenance, less weight( easy to transport and installation), high resistance capacity, so make it durable.

Product name: FRP Grating Mold

Material: Carbon Steel, 45#.

Voltage: 110V, 220V, 380V

Mold size: 1000*4000mm, 1200*3660mm, customized

Certificate: ISO 9001:2008

Original: China

Loading Port: Tianjin,Qingdao,Shanghai.

Inquiry Now

Specification

Before you buy FRP grating machine, firstly, you should know what size of FRP grating you want to produce, each FRP mold can produce only one size (mesh & panel).

Mesh size:

Normal size are 38*38mm/50*50mm

Mesh Height:

Normal size are 25mm/ 30mm/38mm/50mm/ 65mm

Panel size(Width x Length):

Normal size are 1220*3660mm/1220*2440mm /1220*4000mm /1000*4000mm

We also provide customized dimension of FRP grating mold to meet all customer’s requirements.

No.	Mesh Size (mm)	Panel Size (mm)	Rib Thk (mm)
1	38 x 38 x 38	1220 x 3660 / 1000 x4000	7/5 (Top/Bottom)
2	38 x 38 x 30	1220 x 3660 / 1000 x4000	6.6/5 (Top/Bottom)
3	38 x 38 x 25	1220 x 3660 / 1000 x4000	6.3/5 (Top/Bottom)
4	50 x 50 x 50	1220 x 3660 / 1000 x4000	8/6 (Top/Bottom)
5	19 x 19 x 38	1220 x 3660 / 1000 x4000	7/5 (Top/Bottom)
6	100 x 25 x 25	1220 x 3660	7/5 (Top/Bottom)
7	100 x 25 x38	1220 x 3660	8/6 (Top/Bottom)

Remark: Both Mesh Size, Panel Size and Mesh Shape can be customized

Accessories Equipment

RELATED EQUIPMENT of FRP GRAGTING MACHINE

In the production process of FRP grating , auxiliary equipment plays a very important role. These equipment can improve production efficiency, ensure product quality and improve the working environment.

FRP Grating Mold Structure

FRP Grating Mold Details

The mold is small metal which made by S45C steel, and adopt chromium plating method, As a important part of the machine, it has advantage of smooth surface, high hardness an lone serve life.

Water Cycle System

It has water cycle heating and water cycle cooling system, FRP grating use thermosetting resin, the resin become solidified with the temperature increase.

Key Component of FRP Grating Mold

Ejector Pin
Mould Blocks
Hydraulic Pump
Copper Water Pipe System

Photos Reference

FAQ

■ Description of FRP grating machine?______________________________________________________________________________________________________________________________

■ Normal size of FRP grating mold?____________________________________________________________________________________________________________________________

■ What kind of raw material used for making FRP grating?______________________________________________________________________________________________________________________________

■ What kind of accessories euqipment need for FRP grating machine？______________________________________________________________________________________________________________________________

■ What kind of heating equipment can use for FRP grating machine?______________________________________________________________________________________________________________________________

■ How to install FRP grating machine?______________________________________________________________________________________________________________________________

■ How is FRP grating made?______________________________________________________________________________________________________________________________

■ How to maintence FRP grating mold?______________________________________________________________________________________________________________________________

■ Why need heating and cooling systerms for FRP grating machine?______________________________________________________________________________________________________________________________

■ How many size of FRP grating can produce with one FRP grating mold?______________________________________________________________________________________________________________________________

■ How many pieces of FRP grating mold can put into 1x40ft containers?______________________________________________________________________________________________________________________________

■ Where to buy FRP grating machine?______________________________________________________________________________________________________________________________

■ How to buy FRP grating machine?______________________________________________________________________________________________________________________________

■ How to polish the FRP grating surface?______________________________________________________________________________________________________________________________

■ What kind of filler can use for making FRP grating?______________________________________________________________________________________________________________________________

■ Normal type of FRP grating surface?______________________________________________________________________________________________________________________________

■ FRP grating clips accessories type?______________________________________________________________________________________________________________________________

■ Factory facilities request for FRP grating machine?______________________________________________________________________________________________________________________________
