FRP Pultruded Profile Mold
Product name: FRP Pultruded Profile Mold
Material: Steel
Length: 900mm or as request
Certificate: ISO9001:2008
Original: China
Loading Port: Tianjin,Qingdao,Shanghai
Email
: cn@chinaestop.cn
FRP Pultruded Profile Mold Specification / Features

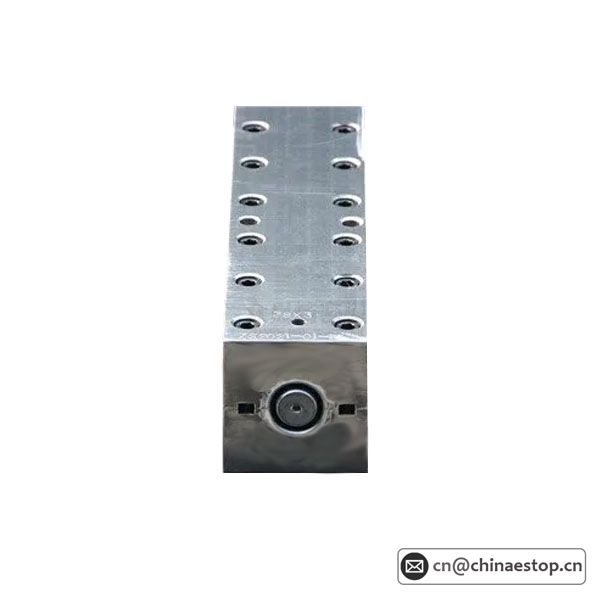

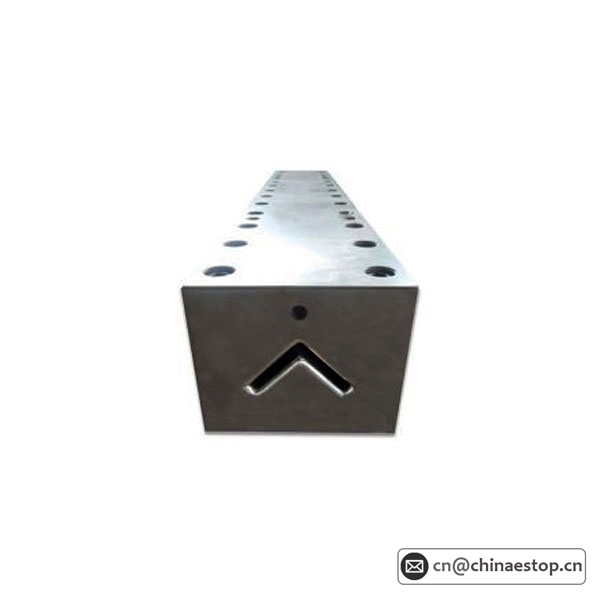

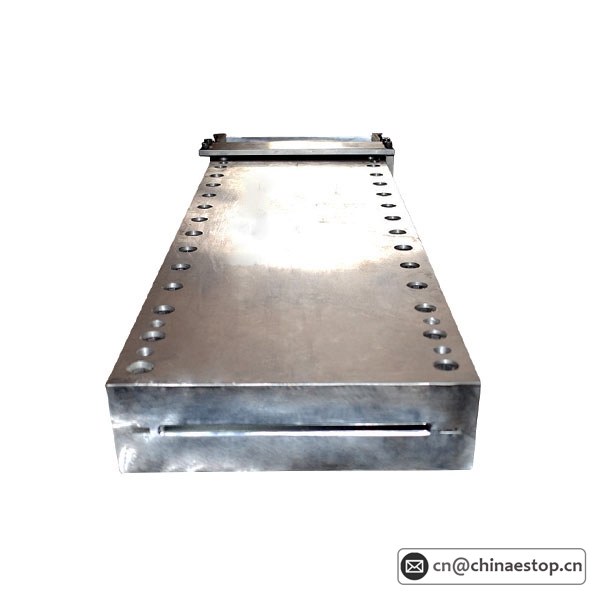

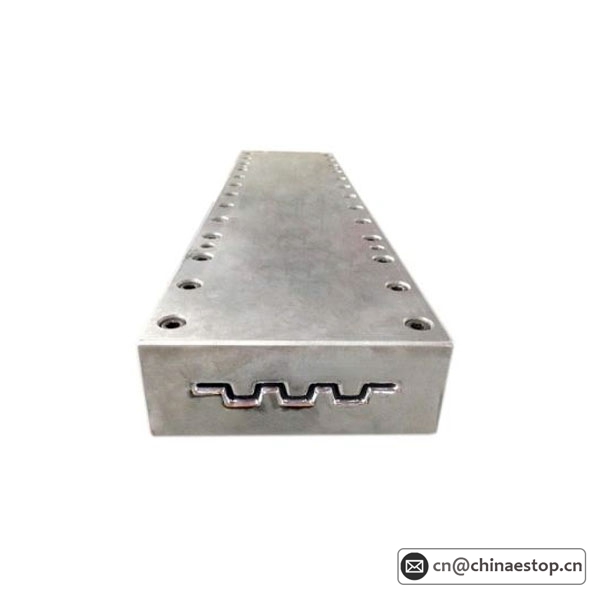

FRP pultrusion profile mold is used for producing the FRP profiles such as rod, tube, beam, frame and etc. The mold is fixed on the frp pultrusion machine, through roving and resin pultrusion process, the FRP profile is shaped on the mould. The profiles pull out of the mold by pultrusion pulling section in controlled speed.
● Hardness: HRC 55~62
Material: P20 , Cr12, Cr12Mov , Cr12Mo1V1, D2 , H13 , 1.2379
● Products Shape:
Box Profile
Round Pipe
Square Tube
Flat Bars
Flat Sheet
I Beam
H Beam
U Chanel
C Channel
Kick Plate
Hand Rail Top Cover
OEM shape
● Produce Raw Material:
Unsaturated polyester resin
Epoxy rein
Polyurethane resin/
Phenolic resin
Vinyl resin +fiberglass
Carbon fiber
● Surface Treatment: Chrome plated, Mirror polish , Hardening , Nitriding .
● Use life: 50000-200000 Meters
Process
1. Steel cutting
2. Fly-cutter
3. Rough grinding
4. CNC Milling
5. Final grinding
6. Hole drilling
7. Polish
8. Hard chrome plating/Nitriding
9. Polish again and assemble die
10.Packing and shipment
