Description
FRP (Fiber Reinforced Polymer) pultruded molds refer to the tooling used in the pultrusion process for manufacturing continuous lengths of composite profiles. These molds, often referred to as dies, are crucial in determining the shape, size, and quality of the final FRP products.
Pultrusion Process Overview
The pultrusion process involves pulling continuous strands of fiber reinforcement through a bath of liquid resin. The impregnated fibers then pass through a heated die, which shapes the profile and cures the resin. The pultruded product emerges as a continuous length of the desired shape, such as I-beams, C-channels, grating, rods, or tubes.
Die Design and Materials

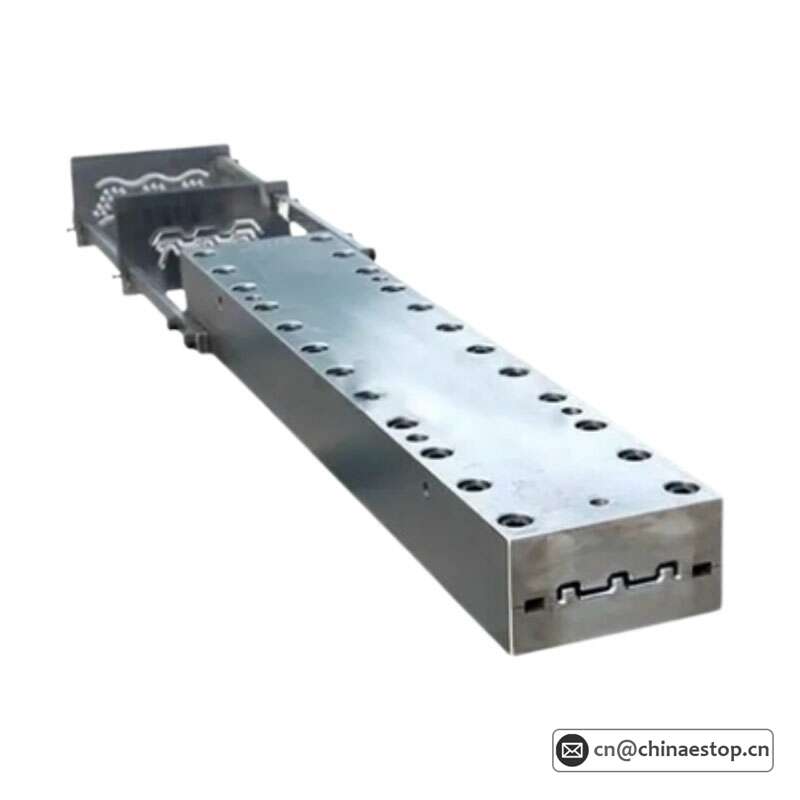

The die used in the pultrusion process must be precisely engineered to match the desired cross-sectional geometry of the final product. It is typically made from high-quality metals like steel or tool steel, which can withstand the high temperatures and pressures encountered during the curing process. The die must have a smooth surface finish to ensure the composite profile is free from defects and has good surface quality.
Key Features of Pultrusion Dies
- Temperature Control: The die is heated to facilitate the curing of the resin, which requires precise temperature control to ensure uniform curing and prevent defects.
- Tapered Entry Section: The die often includes a tapered entry section to guide the resin-impregnated fibers smoothly into the shaping area.
- Shaping Section: This is where the fibers are compressed to the final shape of the profile. The shaping section must be dimensionally accurate to produce parts with tight tolerances.
- Cooling System: Some dies incorporate cooling systems to manage the temperature after the resin has cured, helping to maintain the profile’s shape and prevent distortion.
Maintenance and Quality Control
To ensure the longevity and reliability of the pultrusion dies, regular maintenance is essential. This includes cleaning the die to remove any residual resin buildup and inspecting for wear or damage that could affect the quality of the pultruded profiles. Precision measurement tools are used to verify that the die dimensions remain within specified tolerances.
Customization
Pultrusion dies can be customized according to the specific requirements of the end product. This includes adjusting the shape, size, and even the inclusion of features like holes or notches in the profile. The customization capabilities allow for the production of a wide variety of FRP profiles tailored to diverse applications.
Conclusion
The FRP pultruded mold plays a critical role in the production of high-quality composite profiles. Its design, material selection, and maintenance directly impact the efficiency of the pultrusion process and the integrity of the final products. Understanding the intricacies of die design and operation is essential for manufacturers aiming to optimize their pultrusion processes and deliver consistent, high-performance FRP components.
Different type of FRP pultrusion Die
FRP Pultrusion Round Pipe
FRP Pultrusion Round Pipe is one kind of pultruded FRP profiles, These pipes are typically made from a combination of glass fiber reinforcement and a thermosetting resin matrix, such as polyester, vinyl ester, or epoxy resins.

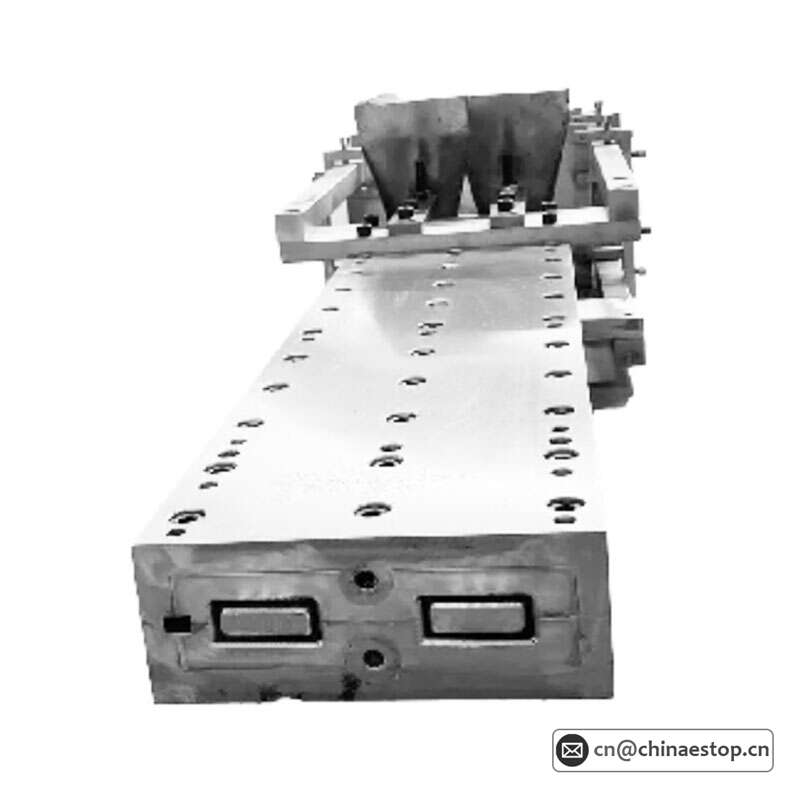

FRP Pultrusion Box Profile Mold

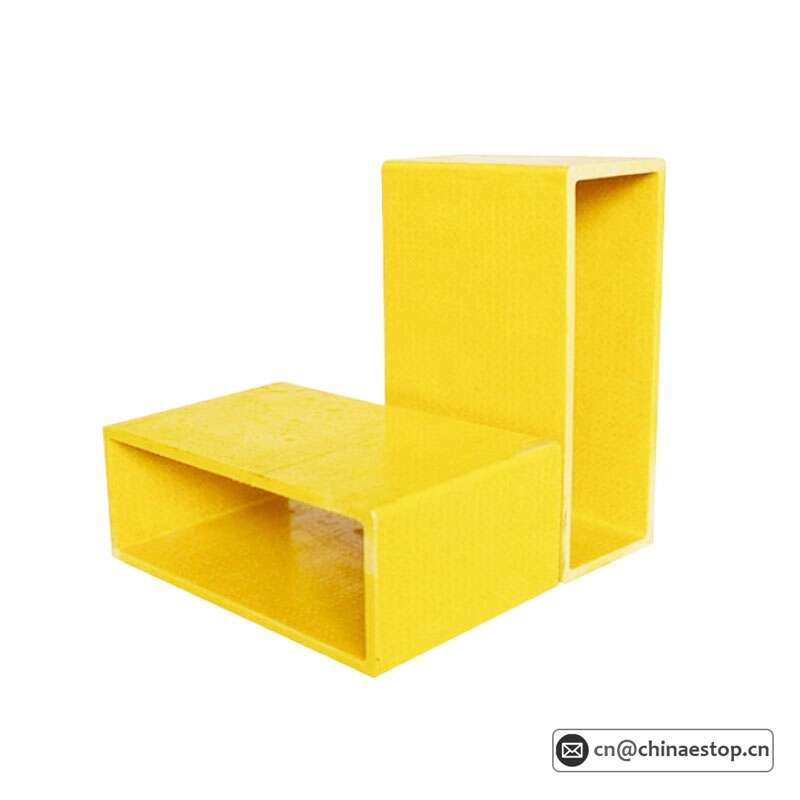

FRP Pultrusion Box Profile are characterized by their hollow, rectangular cross-sections, resembling boxes or channels. The pultrusion method allows for the continuous production of these profiles with consistent dimensions and high-quality surface finishes.

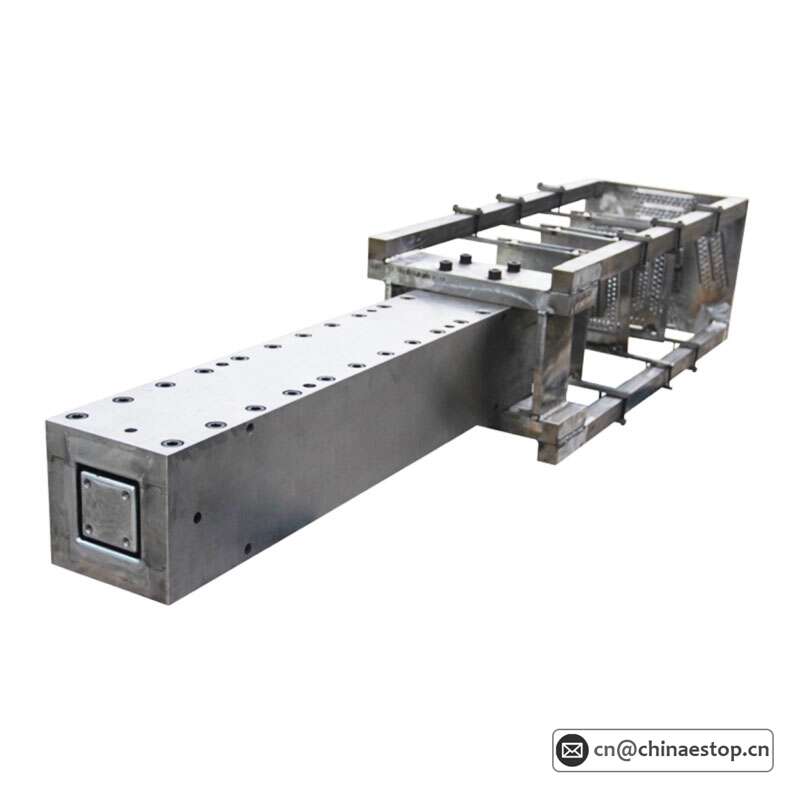

FRP Pultrusion Square Tube Mold

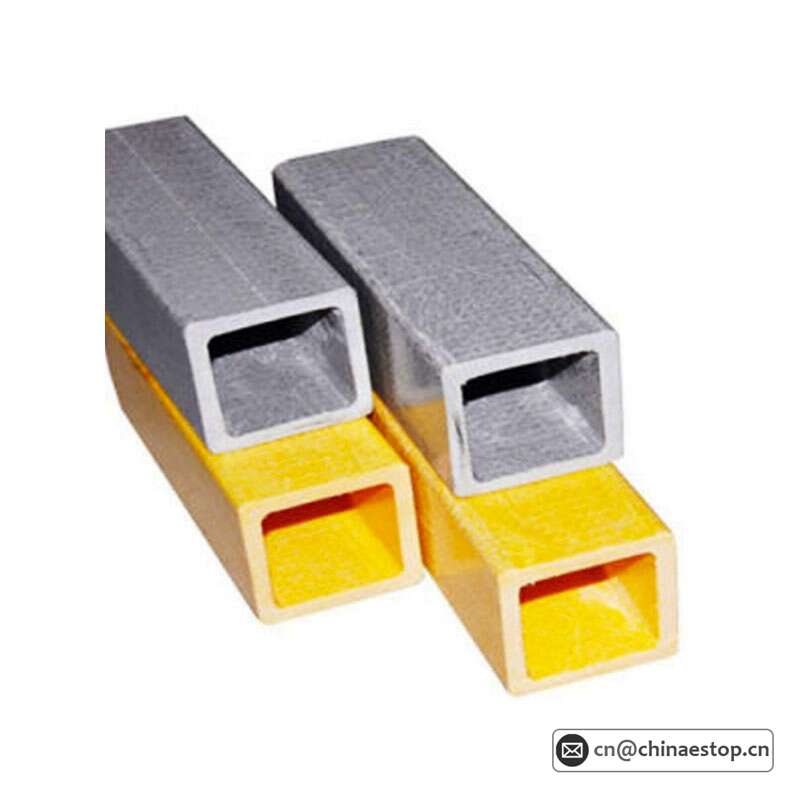

Fiber Reinforced Polymer (FRP) Square Tube is one of pultruded FRP profiles, It is a widely used structural material in various applications due to its high strength, lightweight, and corrosion-resistant properties.

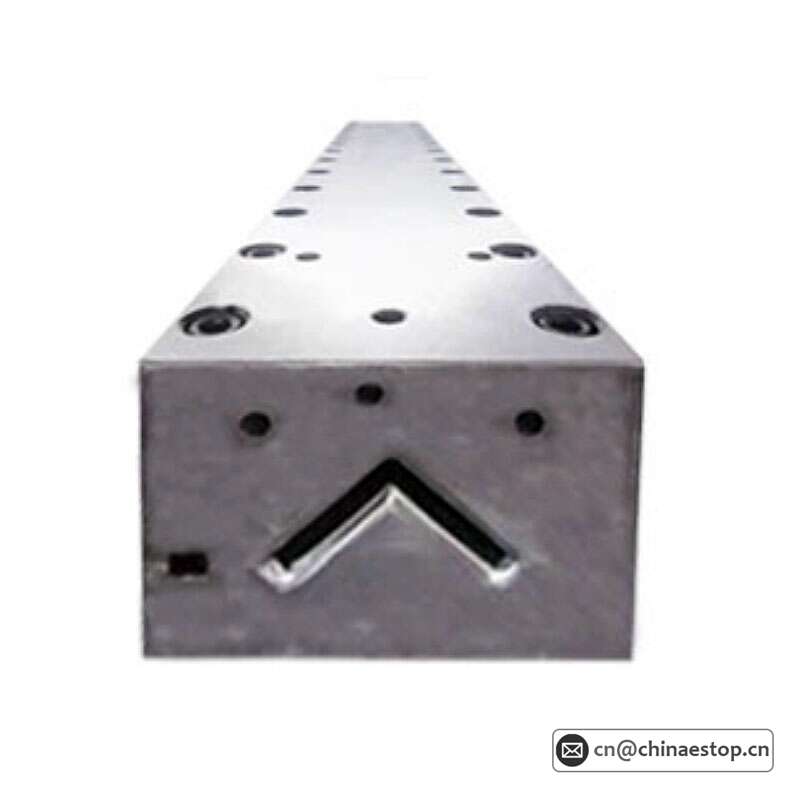

FRP Pultrusion Angel Bar Mold

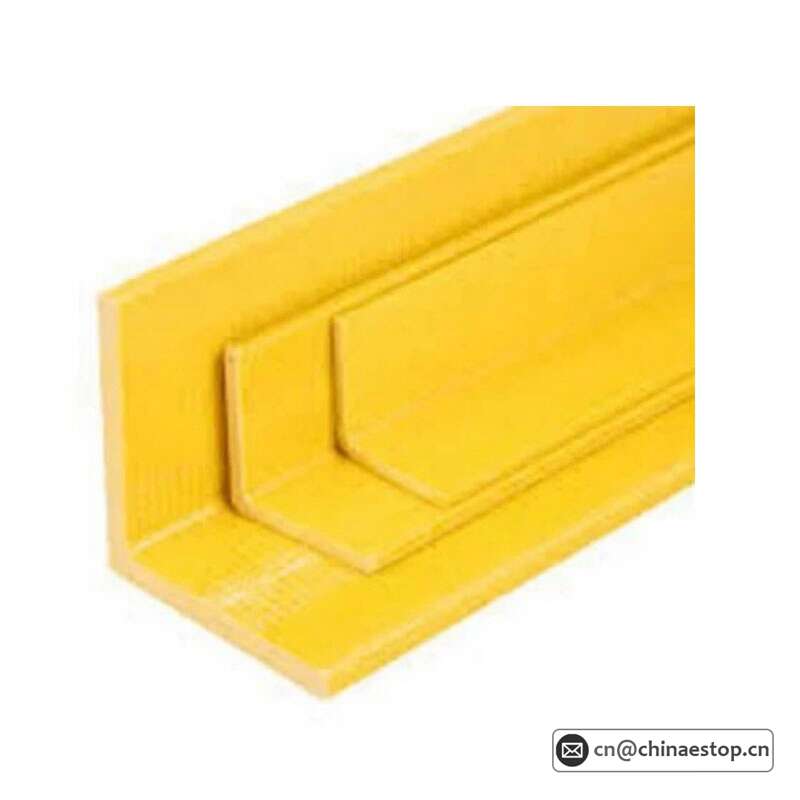

FRP Pultrusion Angel Bar is one of pultruded FRP profiles, It is glass fiber reinforced plastic (FRP) material made by pultrusion process. This material combines the high strength and rigidity of glass fiber with the corrosion resistance and workability of the resin matrix.

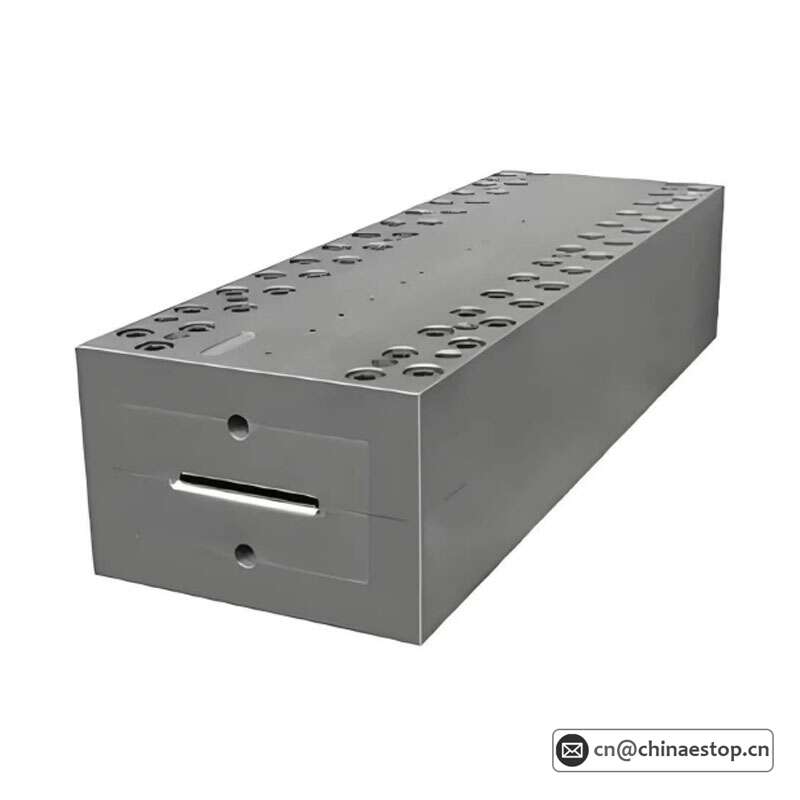

FRP Pultrusion Flat Bar Mold

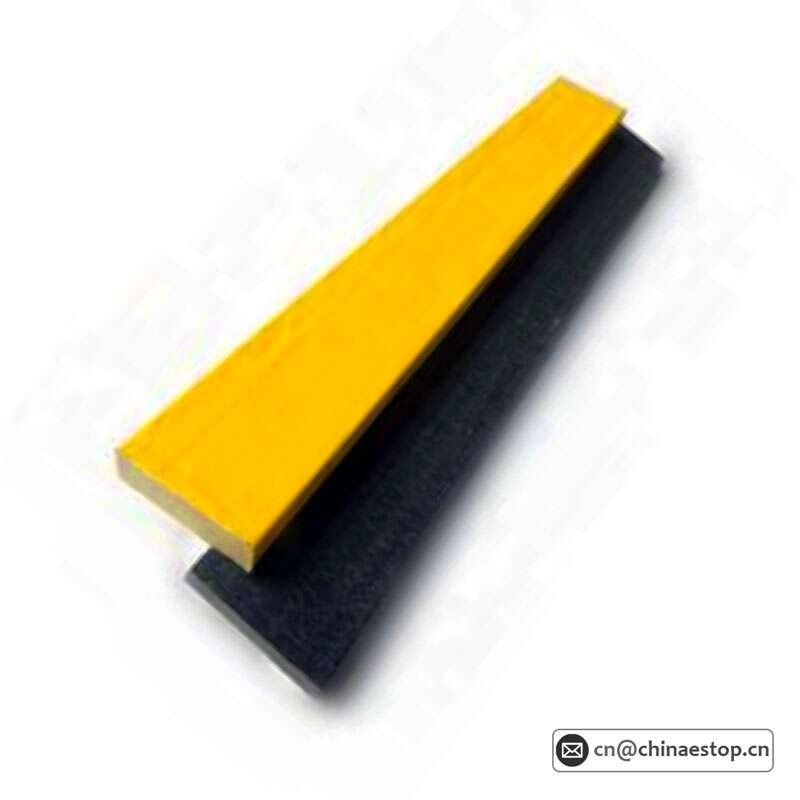

FRP (Fiber Reinforced Polymer) Pultrusion Flat Bars are composite materials that have been manufactured through the pultrusion process, which is a continuous manufacturing method used to produce constant cross-section profiles

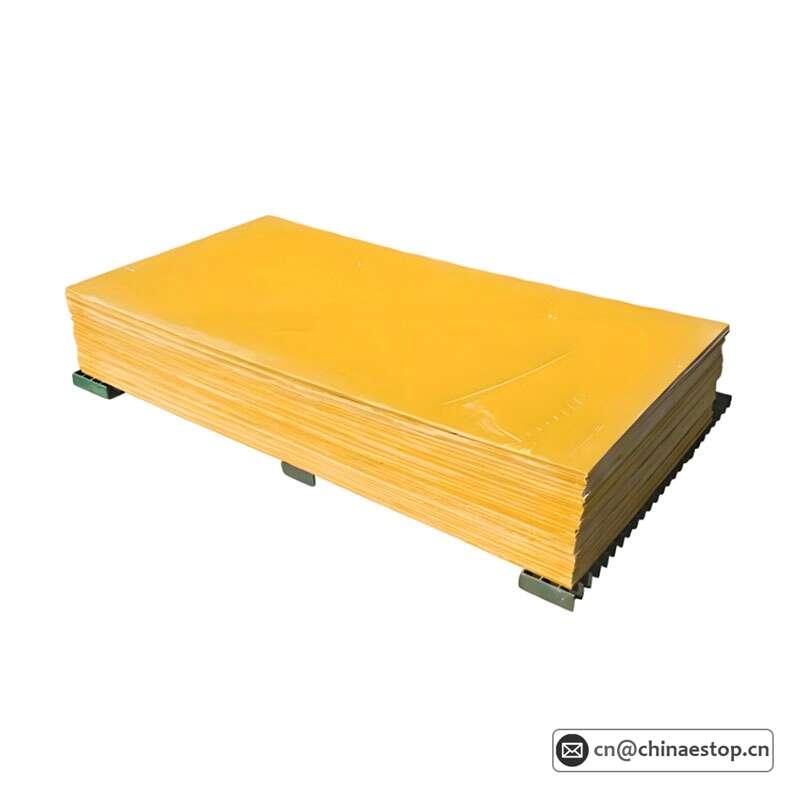

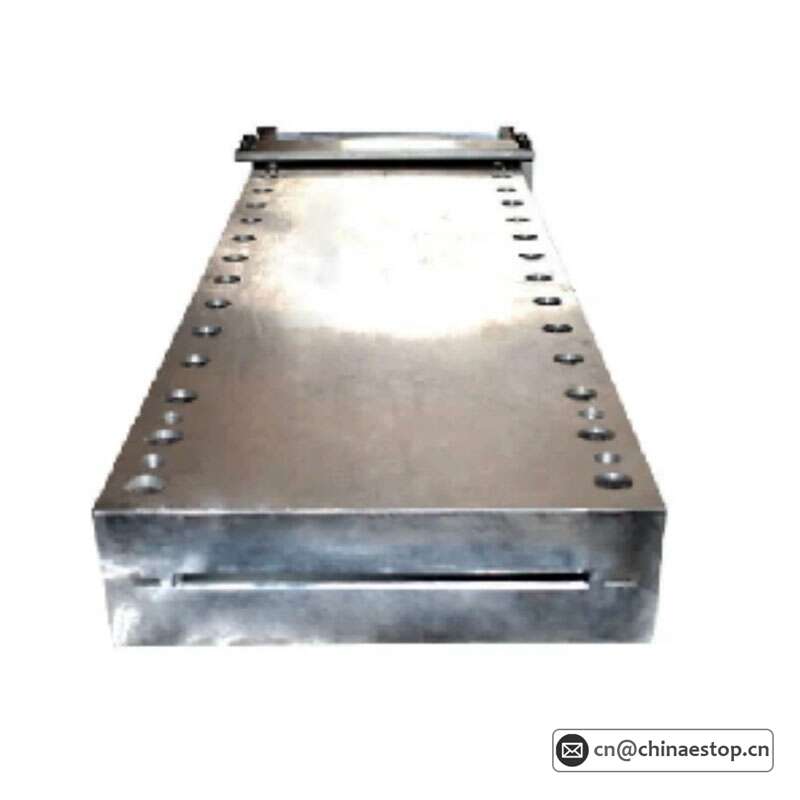

FRP Pultrusion Flat Sheet Mold
FRP Pultrusion Flat Sheets consist primarily of glass fibers as the reinforcing material, embedded in a polymer resin matrix. Common resins used include unsaturated polyesters, vinyl esters, and epoxies. Additional fillers and additives can be included to enhance specific properties such as flame retardancy, UV stability, or electrical conductivity.

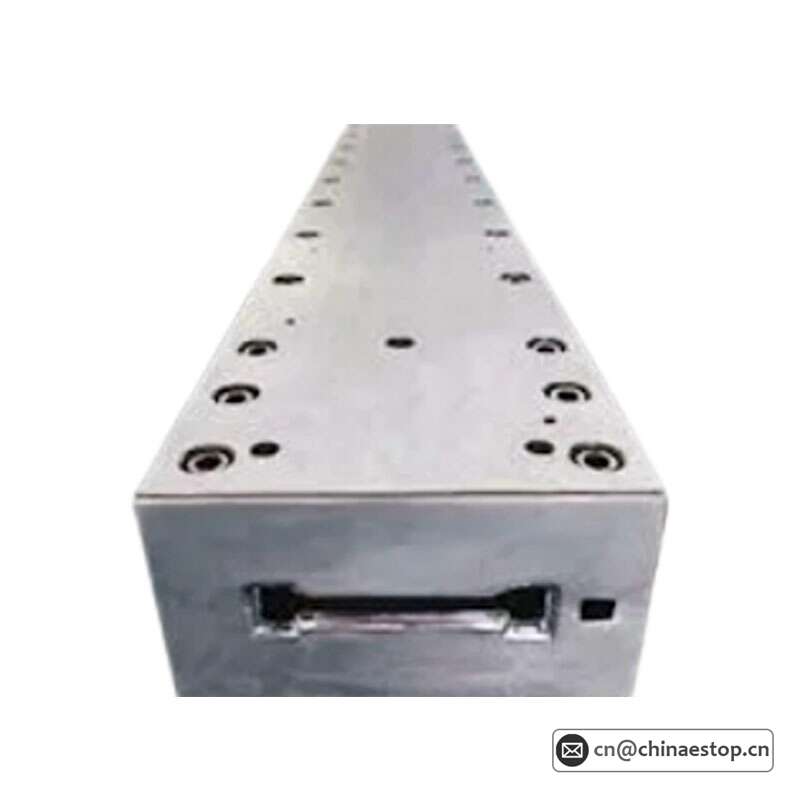

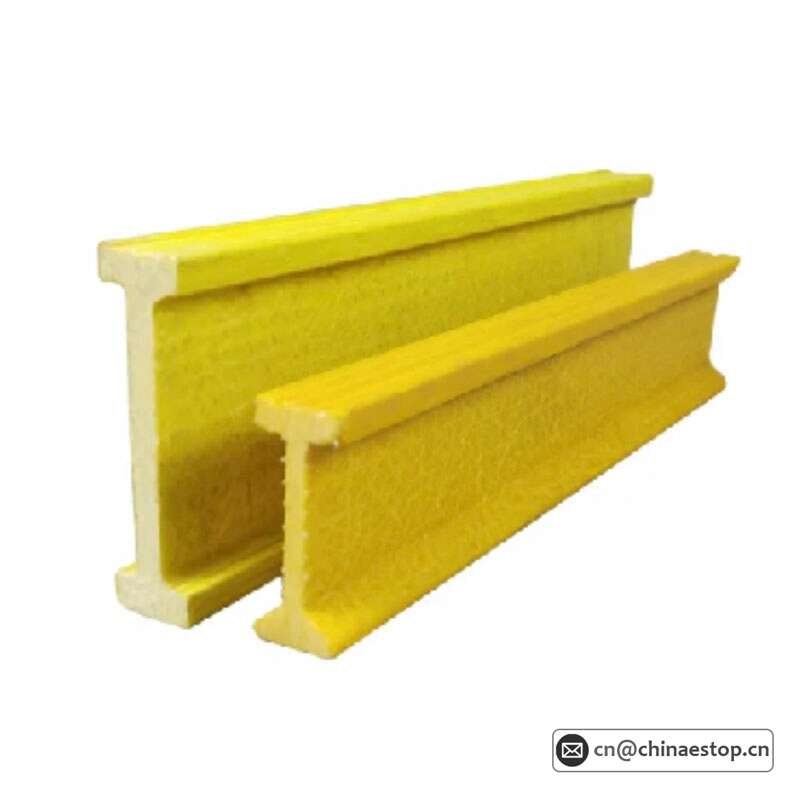

FRP Pultrusion I Beam Mold
FRP (Fiber Reinforced Polymer) I Beams, also known as FRP I-sections or composite I-beams, are structural members that are manufactured using the pultrusion or compression molding processes. These beams are designed to mimic the shape and function of traditional steel I-beams but offer distinct advantages due to their composite material composition.

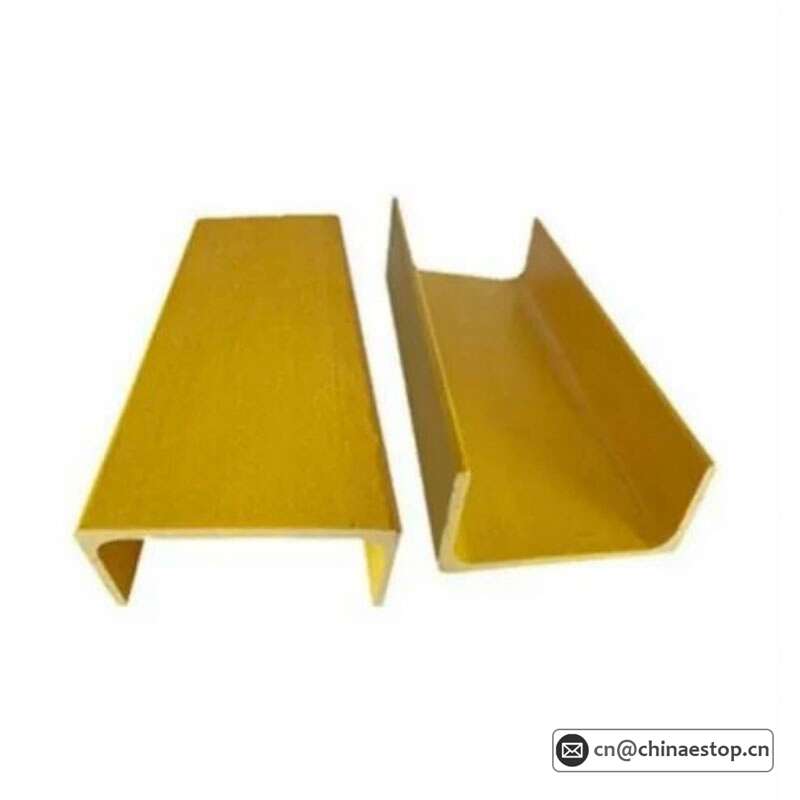

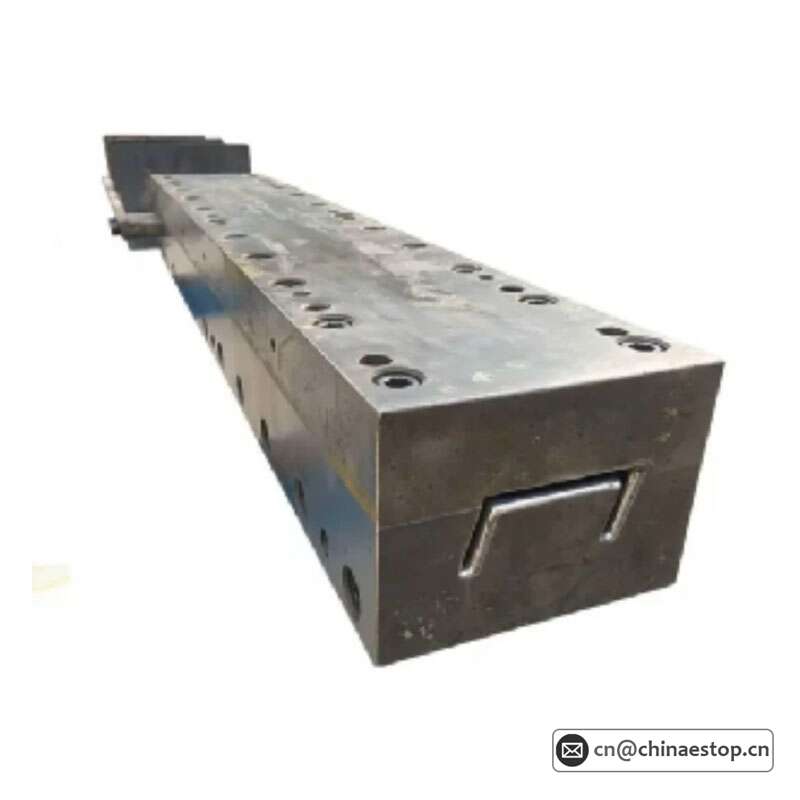

FRP Pultrusion U Chanel Mold
FRP (Fiber Reinforced Polymer) Pultrusion U Channels, also known as C-channels, are composite structural members produced through the pultrusion process. These profiles are characterized by their U-shaped cross-section, which provides strength and stiffness while keeping the weight low.

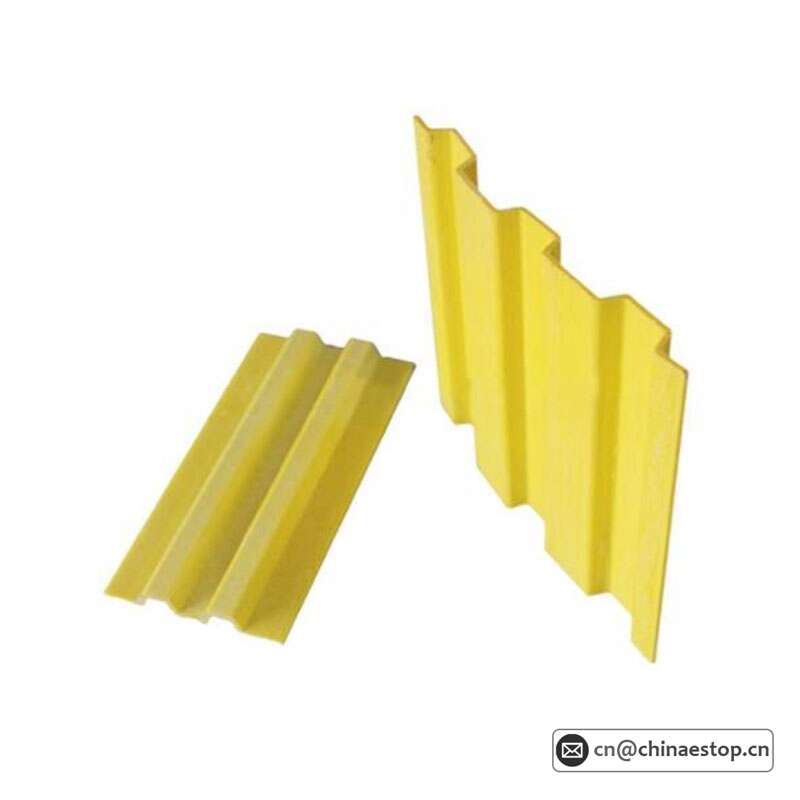

FRP Pultrusion Kick Plate Mold
FRP Kick Plates are made from a matrix of thermosetting resins, such as polyester, vinyl ester, or epoxy, reinforced with glass fibers or occasionally carbon fibers. This combination results in a material that is strong, lightweight, and highly resistant to corrosion and wear.

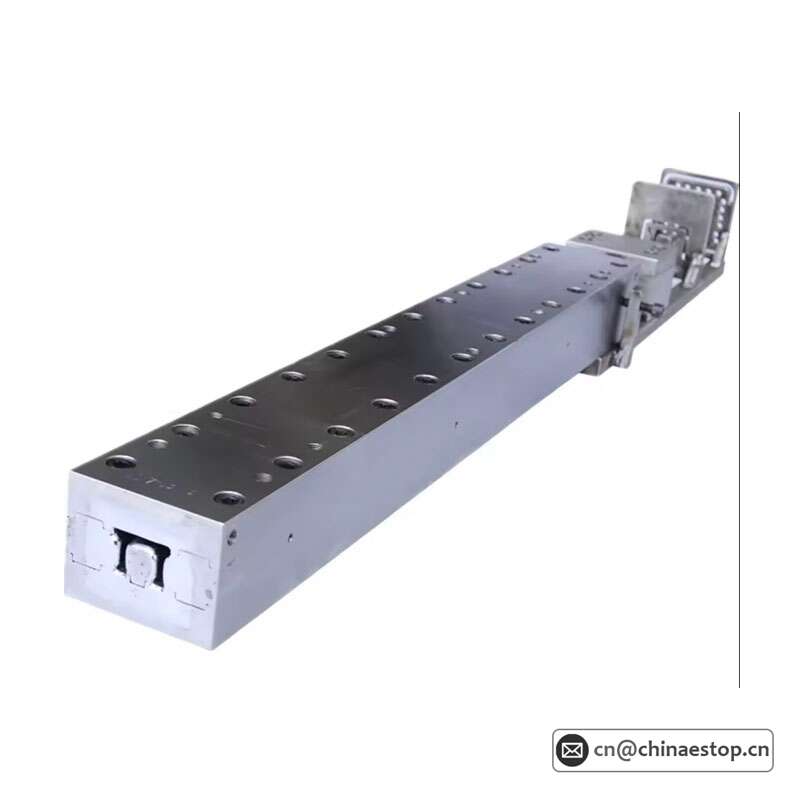

FRP Pultrusion Hand Rail Top Cover Mold

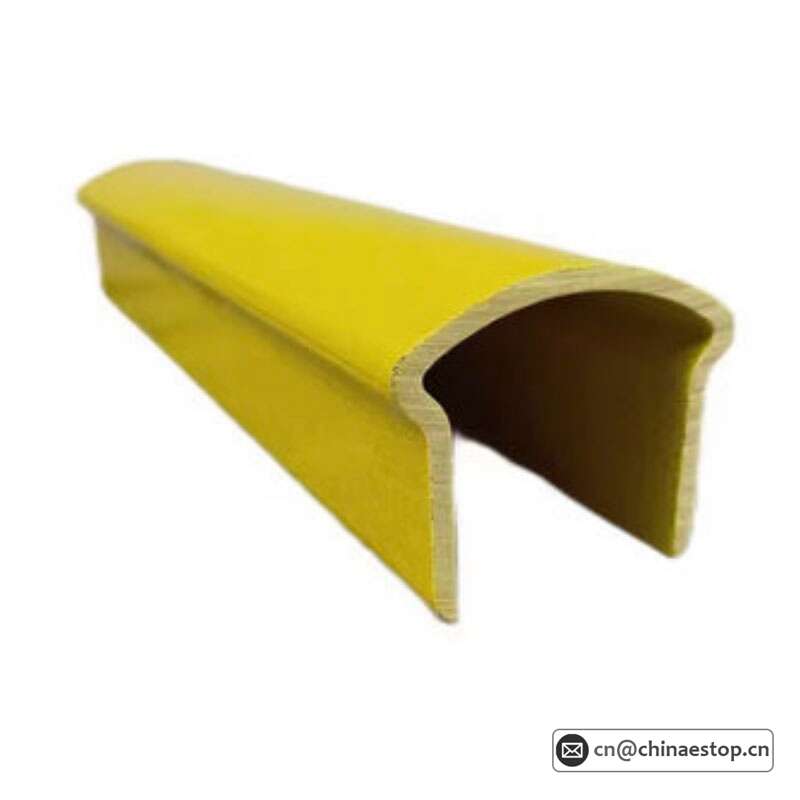

FRP (Fiber Reinforced Polymer) Pultrusion Handrail Top Covers are composite components designed to provide a protective and ergonomic covering for handrails in various applications. These top covers are manufactured using the pultrusion process, which enables the production of long, continuous sections with consistent quality and high durability.
