GRP water tank ( Glassfiber Reinforced Plastic Water Tank) is also called “SMC storage water tank”, It is a good way to store water, It is installed by SMC panels, bolts & nuts, Seal components, steel instruction parts, suitable pipes. It is easy and quick to installation. The GRP panels are connected by the bolts&nuts, steel support rod, sealing rubber strips, basic channel steel, lacing wire, lacing wire plates, ladders, manhole cover, flanges, etc. More and more traditional water tanks are being replaced by GRP tanks.
Product Name: GRP Water Tank
Material: Fiberglass and Resin
Capacity : 1m³ - 1000 m³
Manufacturing Process : Hot pressed SMC compression moulding
Original: China
Loading Port: Tianjin,Qingdao,Shanghai.
Specification
- SMC = Sheet Moulding Compound
- FRP = Fiber-Reinforced Plastics
- GRP = Glass-Reinforced Plastic
- Raw material: fiberglass/FRP/GRP
- Panel size: 1000mm*1000mm, 1000mm*500mm, 500mm*500m
- Connection way: bolted connect
- Panel thickness(according to height):2mm-18mm
- Foundation: concrete foundation or U-steel bottom base
Note: GRP Water Tank constructed by assembling standard-sized SMC molded panels, GRP panel sizes such as: 1000×1000 mm,1000×500 mm,500×500mm,1500×500 mm,The length, width, and height dimensions of the water tank should be selected as multiples based on 500mm.
How to Calculate Capacity of GRP Water Tank
Rectangular or Square GRP Water Tank
For tanks with a rectangular or square base, use the formula:
Volume (V) = Length (L) × Width (W) × Height (H)
Notes:
- The result is the volume in cubic meters (m³).
- To convert cubic meters to liters (L), multiply by 1000 (since 1 m³ = 1000 L).
Technical Data

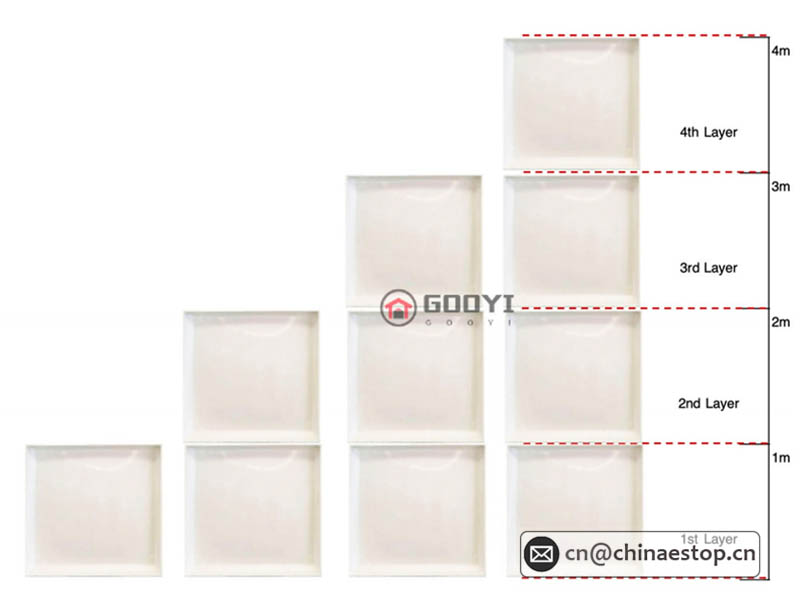

| GRP Water Tank Height | GRP Water Tank Panel Thickness (mm) | |||||
| bottom | side 1st | side 2nd | side 3rd | side 4th | Top panel thk | |
| 1m | 7mm | 7mm | 4/5mm | |||
| 1.5m | 8mm | 8mm | 7mm | 4/5mm | ||
| 2m | 8mm | 8mm | 7mm | 4/5mm | ||
| 2.5m | 10mm | 10mm | 8mm | 7mm | 4/5mm | |
| 3m | 12mm | 10mm | 8mm | 7mm | 4/5mm | |
| 3.5m | 14mm | 12mm | 10mm | 8mm | 7mm | 4/5mm |
| 4m | 16mm | 14mm | 12mm | 10mm | 8mm | 4/5mm |
GRP Water Tank Panel Weight | |||||||||
| Panel Type | 20# | 18# | 16# | 14# | 12# | 10# | 8# | 5# | 4# |
| Round Design | 40kg | 36kg | 32kg | 28kg | 24kg | 21kg | 18kg | 13kg | 11.5kg |
| Square Design | / | / | 34kg | 31kg | 26kg | 22kg | 18kg | 13kg | / |
GRP Water Tank Panel Properties | |||||
| Tensile Strength | Bending Strength | Bending modulus | Pap hardness | Bibulous rate | Glassfiber Content |
| ≥60 Mpa | ≥100 Mpa | ≥7GPa | ≥60 HBa | ≤1.0% | ≥25% |
Accessories Include for GRP Water Tanks
- PANELS --
Size: 1000× 1000mm, 1000× 500mm, 500× 500mm Panel thickness : 4mm, 5mm, 8mm, 10mm, 12mm, 14mm, 16mm.
- BOLTS & NUTS& WASHERS ——
For accessmble the water tank panel. Material with hot dipped galvanized or Stainless steel Grade 304/316
- BASE STEEL——
C-Chanel steel (10# or 12#), Surface with hot dip galvanized or red painting.
- INTERNAL STRUCTURE——
Support for panels, Rod support and tie-rod, Hot dipped galvanized or Stainless steel Grade 304/316
- FLANGES——
For drainge, overflow hole etc. Hot dipped galvanized or Stainless steel Grade 304/316 or PVC
- SEALING RUBBER——
Food grade white color EPDM or Silicon
- LADDERS——
Use for height more than 1.5 meters water tank. Galvanized mild steel.
- WATER INDICATOR——
Glass with brass valve or Float type
- MANHOLECOVER——
Manhole opening & Inspection Hatches, Standard size ; 600*600mm, can be customized.

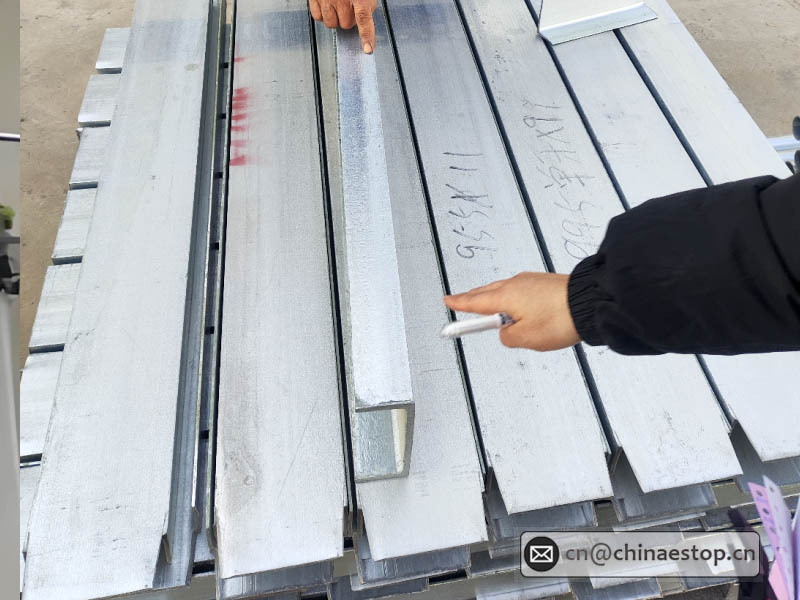

C Chanel Base
Lacing Bar

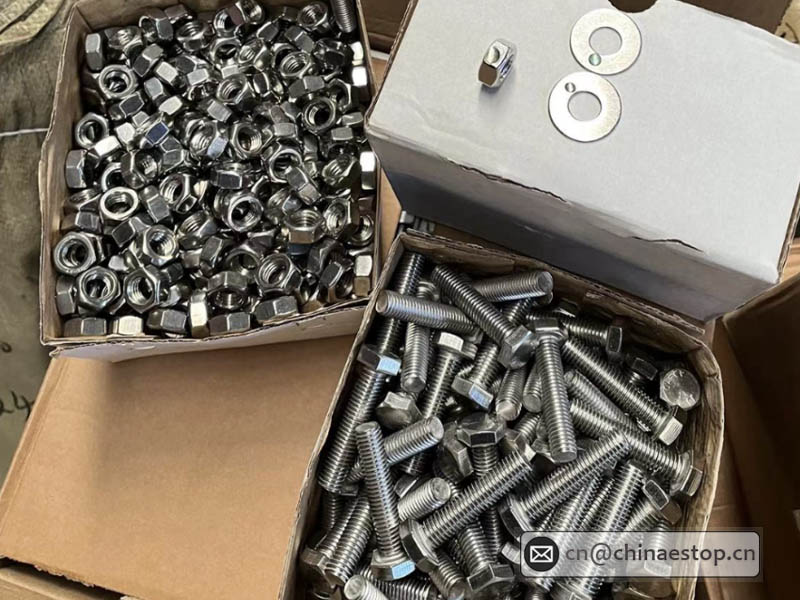

Bolts & Nuts & Washer

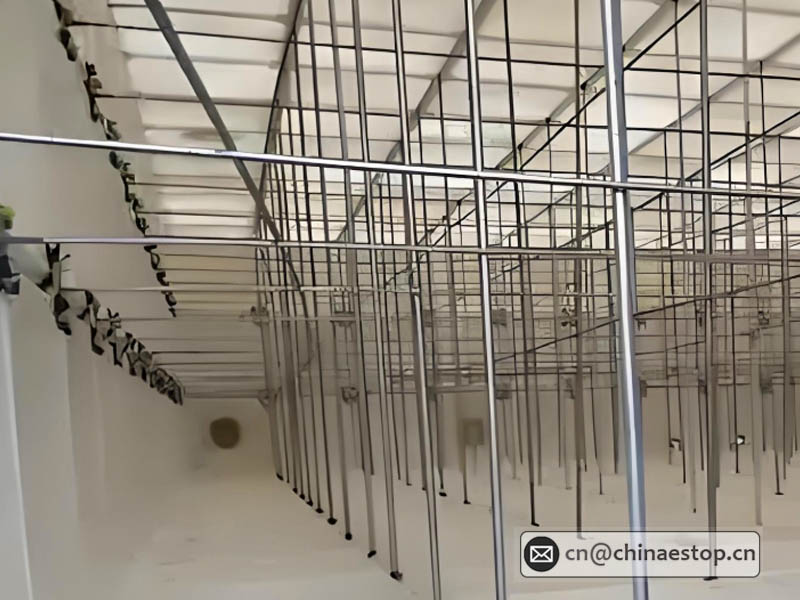

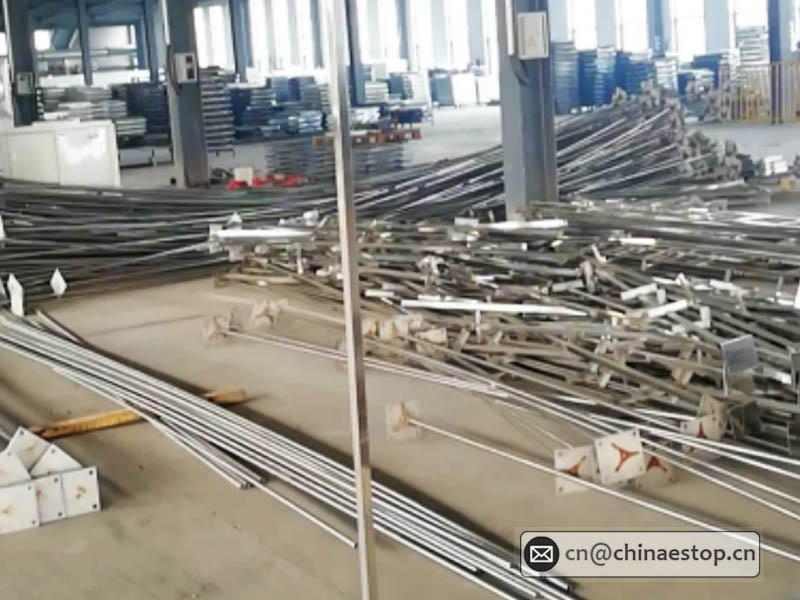

Inner Support Rod

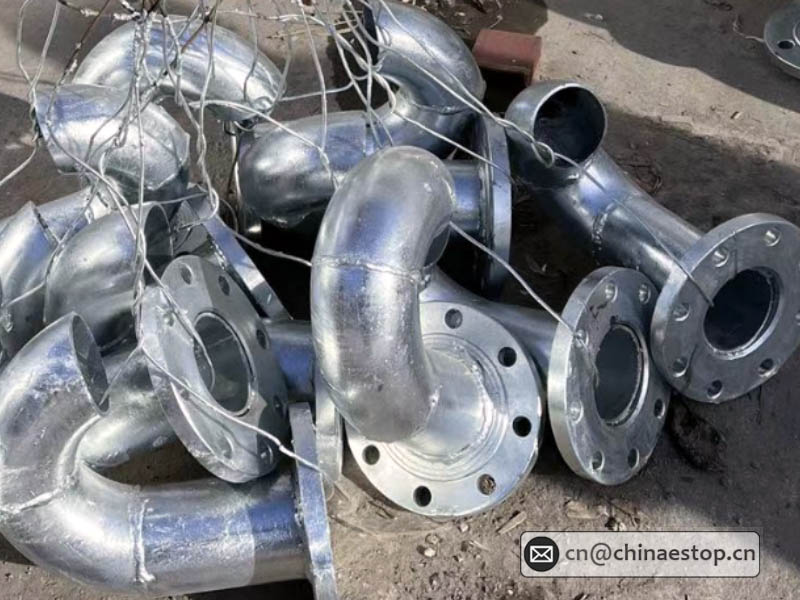

Flanges
Water Stoppage Angle Iron

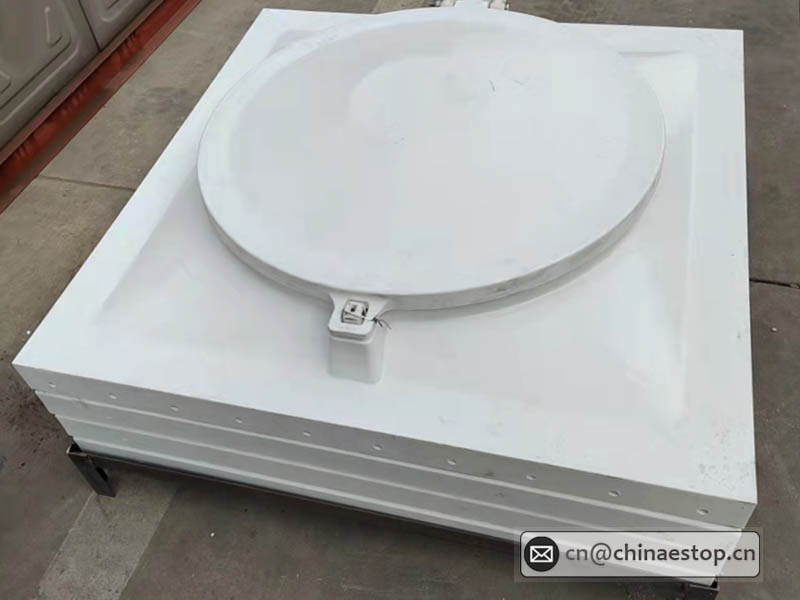

Manhole Cover

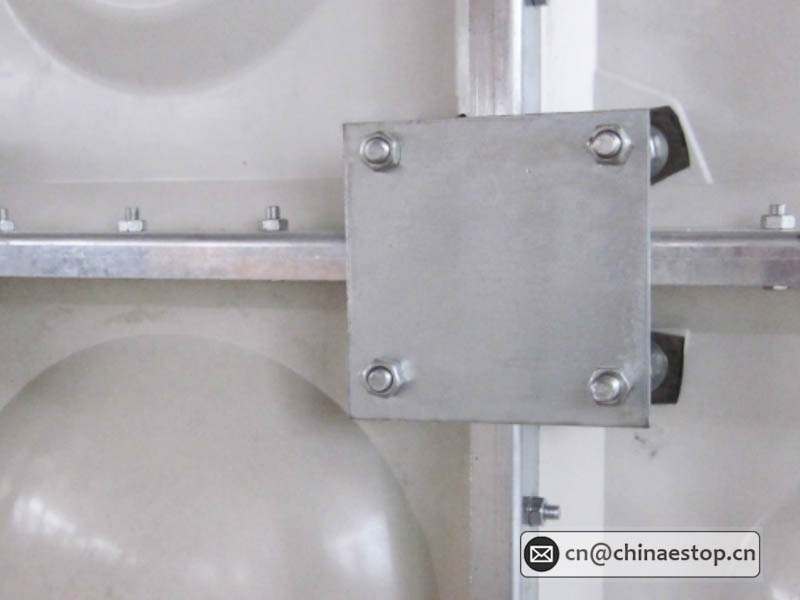

Lacing Bar Board

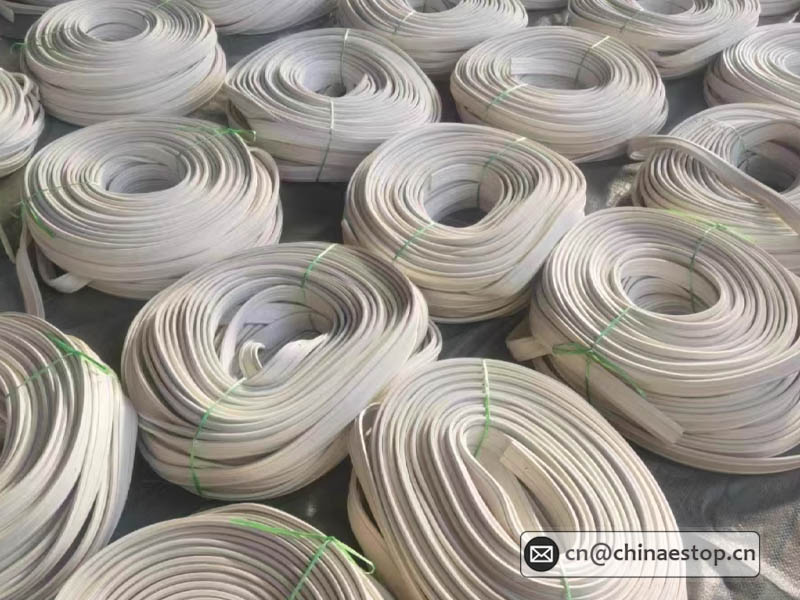

EDPM Sealing Belts
Glass Cement

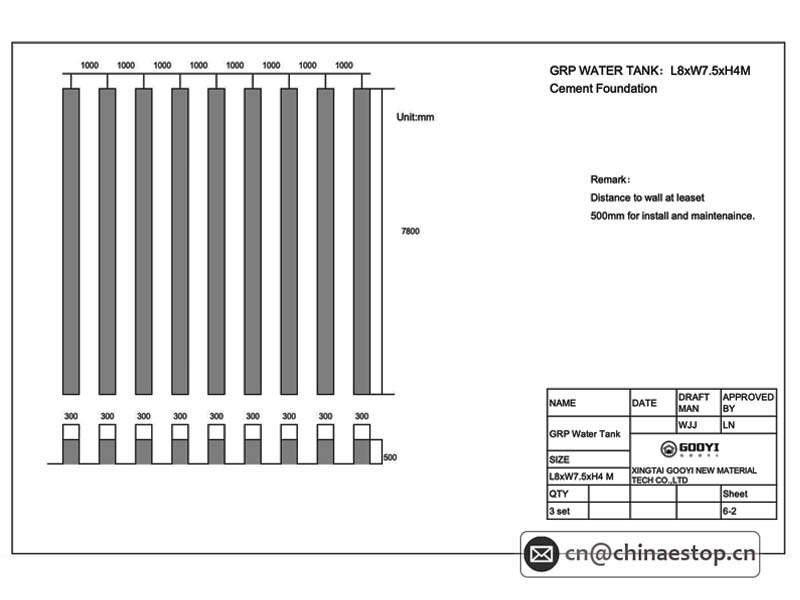

Foundation
Notes: C-Chanel Base Option Choose: 1) Water Tank Height ≤ 1500mm, choose 8#(80mm) C Chanel Steel Base. 2) Water Tank Height ≤ 3000mm, choose10# (10mm) C Chanel Steel Base, Water Tank Height ≥ 3000mm, choose 12#(120mm) C Chanel Steel Base.
Installation Step
Step 1. Make a concrete foundations& install the C-chanel base of water tank
Step 2. Adjust the SMC panels to prepare the assemble of water tank.
Step 3. Install the sealing belt the gap of GRP panels.
Step 4. Connect sectional panels with bolts and nuts.
Step 5. Position the 4 sides of the GRP water tanks.
Step 6. Fix roof cover GRP panels.
Step 7. Install reinforcement if required.
Step 8. Close up the tank with thefourth side.
Step 9. Finish the internal & externalreinforcement.
Step 10. Test it with water
Structural of Insulation GRP Water Tank
How to make the insulation layer
for GRP water tanks?
The insulation layer of the GRP water tank is made of polyurethane foam composite color steel plate with a thermal conductivity of 0.022-0.027W/(m·K), and the bottom is made of high-efficiency materials such as rubber and plastic insulation board with a thermal conductivity of 0.034-0.038W/(m·K). The thickness of the insulation layer is 5CM. These insulation materials have excellent insulation performance. It can effectively maintain the water temperature in the water tank, reduce heat loss, and achieve the goal of energy conservation and consumption reduction.
Packing and Shipping

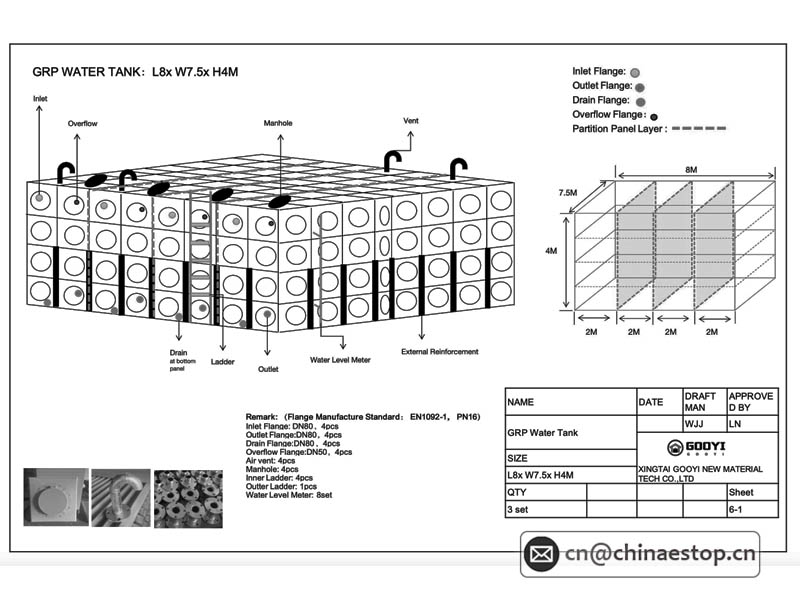

Drawing and Design
- Full set of water tank drawing include (water tank, foundation, accessories location) will be provide to customer to support installation work.
- Our GRP water tank that satisfy your water storage requirements, we a world-class manufacturer base in China.
- Accessoriees type and material can be adjust according to clients requirement.
- Inlet flange, outlet flange, drain flange, overflow flange of GRP water tank we can make OD size and standard as customer request.
Installation Tools of GRP Water Tank
Advantage
- Light weight, 1/10 weight of concrete & Steel
- High Strength
- Corrosion Free
- Easy for handling, installation and transporting
- Low maintenance cost
- Long life material
- Cost savings
- Easily moulded for custom projects
Project Case
APPLICATION CASE
Video Show
WHAT IS GRP WATER TANK
INSTALL STEP of GRP WATER TANK
Main Categories
FAQ FOR GRP WATER STORAGE TANK
■ How to Install GRP Water Tank?
___________________________________________________________________________________________________________________________________________
■ What is The Difference Between FRP and GRP Water Tanks?
___________________________________________________________________________________________________________________________________________
■ GRP Water Tanks vs. Galvanized Steel Water Tanks
___________________________________________________________________________________________________________________________________________
■ Tools Used for Install GRP Water Tank
___________________________________________________________________________________________________________________________________________
■ Different Top Cover Panels of GRP Water Tanks
___________________________________________________________________________________________________________________________________________
■ How to Produce GRP Water Storage Tanks?
___________________________________________________________________________________________________________________________________________
■ What Accessories Include for GRP Water Tanks?
___________________________________________________________________________________________________________________________________________
■ How to Install GRP Water Tank?
___________________________________________________________________________________________________________________________________________
■ Foundations Type for GRP/FRP Water Tank
___________________________________________________________________________________________________________________________________________
